A Straight, Stable Alternative to MGP10 Pine

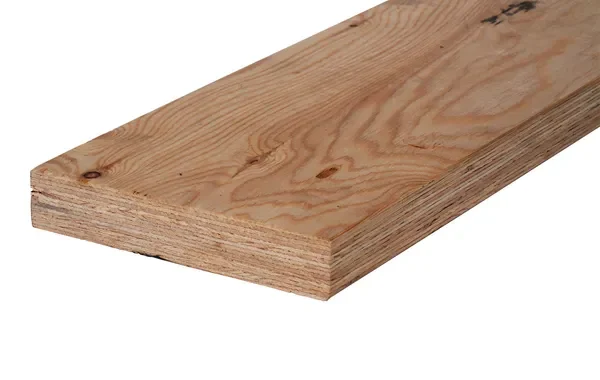

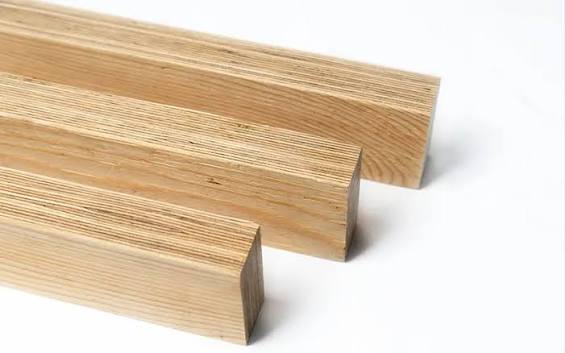

Framing LVL E10 H2S is laminated veneer lumber made from many thin, pre-graded pine veneers bonded together under controlled factory conditions and cut into straight, uniform framing members. Its E10 stress grade gives it a stiffness comparable to MGP10 pine, so it can be used as a direct, like-for-like framing alternative — studs, plates, noggings, lintels and general wall framing — while delivering the straightness and dimensional stability that only an engineered product can. The 'H2S' designation means the timber carries a glueline termite treatment: termiticide is infused into the adhesive during manufacture, so the entire cross-section is protected against termites and borers. Because the whole section is treated, cuts, notches and drill holes do not need re-treating on site — a real time-saver. H2S is for dry, interior, above-ground use south of the Tropic of Capricorn.
Why Choose Framing LVL E10 H2S
Technical Specifications
Product
Structural LVL (laminated veneer lumber)
Standard
Manufactured to AS/NZS 4357
Stress grade
E10 (modulus of elasticity ≈ 10 GPa; comparable to MGP10)
Treatment
H2S — glueline termite/borer treatment
Use conditions
Dry, interior, above ground; south of the Tropic of Capricorn
Cut surfaces
No re-treatment needed (glueline treated throughout)
Veneer
Pre-graded pine veneers
Typical uses
Studs, plates, noggings, lintels, general wall framing
Sizing
Per manufacturer span tables / project engineer
Where Framing LVL E10 H2S Performs Best
Internal wall framing — studs, plates and noggings.
Lintels and general framing over standard openings (per span tables).
Residential and light commercial framing as an MGP10 alternative.
Projects where straight, stable framing improves speed and quality.
Termite-protected framing south of the Tropic of Capricorn.
Renovations and new builds needing reliable, uniform framing members.
Working With Framing LVL E10 H2S
Framing LVL E10 H2S can be cut, nailed, screwed and fixed using standard timber tools and fasteners, just like conventional framing timber. Its straightness and uniform sizing mean less packing and planing for plumb, true walls. Handle and store it flat, supported and protected from the weather before use, as with all framing timber. Size and detail framing members using the manufacturer’s span tables and your engineer or building designer; the E10 grade describes stiffness, but the correct member size always depends on the load and span. Use appropriate framing connectors and follow standard framing practice for spacing, bracing and tie-down.
Get Your Free QuoteFraming LVL E10 H2S Treatment & Compliance
The H2S glueline treatment infuses termiticide into the adhesive during manufacture, protecting the entire cross-section against termites and borers. The major practical benefit is that cuts, notches and drill holes do not need re-treating on site — unlike envelope-treated solid timber, where freshly exposed surfaces must be re-sealed. H2S is for dry, interior, above-ground use and may only be used south of the Tropic of Capricorn. It is not for weather exposure; for exterior, above-ground structural members, use an H3-treated LVL such as our Framing LVL E14 H3 Primed. North of the Tropic of Capricorn, a higher treatment level is required — talk to our team about the right product for your region.
Get Your Free QuoteSpecifying and Sizing Framing LVL E10 H2S
Getting the most out of Framing LVL E10 H2S starts with specifying it correctly. The stress grade tells you the stiffness, and the treatment tells you where it can be used, but the actual member size for a given load and span comes from the manufacturer’s published span tables and design information — and, for primary structural members, from your project engineer or building designer. We can supply the exact sizes, grades, treatments and lengths called up on your plans or engineering documentation, so the simplest approach is to send us your schedule and let us match the product to it. Where it helps, we will also point you to the relevant span tables and technical literature. When you order, it pays to confirm the depth, thickness, grade, treatment and length of every member, plus the quantities, so the delivery arrives complete and ready to build with minimal waste. If you are weighing up grades or treatments — for example, whether a job calls for E10 or stiffer E14, or H2S versus an exterior H3 product — our team is happy to talk it through and help you specify the right member for the application, the location and the budget.
Get Your Free QuoteSustainable & Ethically Sourced
Framing LVL E10 H2S makes efficient, responsible use of fast-growing, plantation-grown veneers, optimising the timber resource through grading and lamination. JVS Timber supplies it manufactured to AS/NZS 4357 and compliant with Australian industry standards. A straight, stable framing timber that reduces waste and rework is a sustainable choice on site as well.
Get Your Free QuoteFraming LVL E10 H2S Sizes & Availability
JVS Timber supplies Framing LVL E10 H2S in the common framing depths and thicknesses and in long, straight lengths. Whether you need a small quantity for a renovation or bulk LVL for a full build, our team can confirm current stock, sizes and competitive trade pricing, delivered Australia-wide. Send us the sizes and lengths on your plans and we will confirm availability.
Get Your Free QuoteFraming LVL E10 H2S — Frequently Asked Questions
Yes — its E10 stress grade is comparable in stiffness to MGP10 pine, so it is designed as a straight, stable, like-for-like engineered alternative for general framing. Always size members using the relevant span tables.
